1100 Series 80W
Laser Engraver / Cutter
$9,000
Laser Engraver / Cutter
$9,000
New Print
Driver is in testing phase
Driver is in testing phase
CNC Routers
Coming
Soon
Coming
Soon
Authorized
PhotoGrav
Distributor
PhotoGrav
Distributor
| Engraving / Cutting Area | 47.2 x 35.4" |
| Laser Power | 80W Upgrade to 100, 120, 150W (Pricing for upgrade below) |
| Laser Type | Co2 Reci |
| Laser Life | 8,000 hrs |
| Machine Dimensions | 65.3 x 51.5 x 40.9 " |
| Max Material Height | 10.6" by Motorized work table |
| Cutting Depth | 1.0" Acrylic |
| Engraving Speed | 39"/Sec |
| Cutting Speed | 23"/Sec |
| Resolution (Dpi) | Up to 1200 Dpi |
| Position Repeatability | .0004" |
| Drive Type | Stepper |
| Power Requirement | Machine will be wired for 110 or 220 (no transformer needed) |
| Work Table Type | Cutting Table with removable Slats. Flat board table also included. optional honeycomb table available |
| Cooling Type | Water Cooling System (chiller) |
| Included Software | Laser Cut 5.3 Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai |
| Supported Software | CorelDraw X3 & X4 , AutoCad 2000, 02, 04 & 06 |
| Color Based Power Settings | Yes |
| Mixed Mode Operation | Yes, able to engrave & cut within a single file |
| Computer | PC w/ XP or Vista 2 Usb ports Required |
| Included Items | Exhaust |
| Air Assist w/ Compressor | |
| 1 80W Laser Tube | |
| 1 Set of Lens & Mirrors | |
| 1 Water Cooling Unit (chiller) | |
| Red Dot Pointer | |
| Optional | |
| Auto Focus $200 | |
| Spare Lens and Mirrors $250 | |
| PhotoGrav $395 | |
| Rotary Attachment $600 | |
| Onsite Setup and Training $1,500 |
[Sitemap]
Legacy Laser's LLC- No part of this sight may be reproduced without written permission from Legacy Laser's LLC. . Legacy Laser's L.L.C. reserves the right to remove or change information without notice. Legacy Laser's is not liable in anyway with regards to discrepancies between information contained on this website, and actual quotations or specifications
814-270-0340
814-270-0340

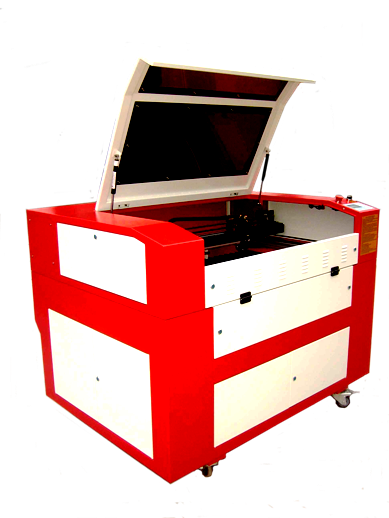

Machine Photos - Click Images to Enlarge
150w add $3,000
120w add $2,000
100w add $1,000
Machine Specifications
Our 1100 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Our 500 Series, 700, 800 & 1100 laser engravers and cutters comes with a manufacturer�s Two year warranty plus service and support from our US-based team of experts.
The 1100 Series laser engravers feature laser tubes ranging from 80 watts up to a powerful 150 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass.
Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.
The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser�s your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum
The 1100 Series laser engravers feature laser tubes ranging from 80 watts up to a powerful 150 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass.
Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.
The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser�s your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum
