800 Series Laser Engraver / Cutter

  • Finance as low as $188/month.

Our 800 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Each of our laser engravers and cutters comes with a manufacturer's Two year warranty plus service and support from our US-based team of experts.

The 800 Series laser engravers feature laser tubes ranging from 60 watts up to a powerful 80 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass. Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.

The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples Page we have that show the capabilities of our engravers! Make Legacy Laser's your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum.

Machine Photo Gallery

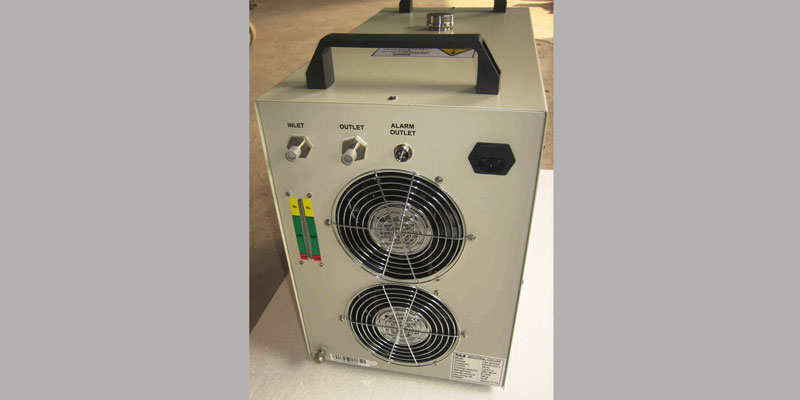

800 Series Chiller rear
800 Series Chiller rear

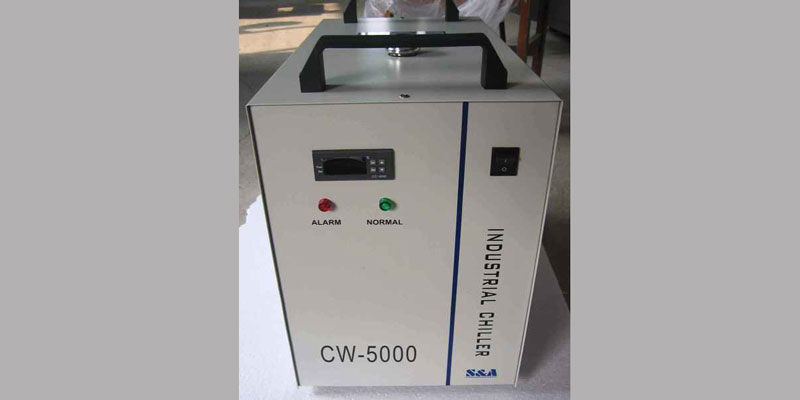

800 Series Chiller Front
800 Series Chiller Front

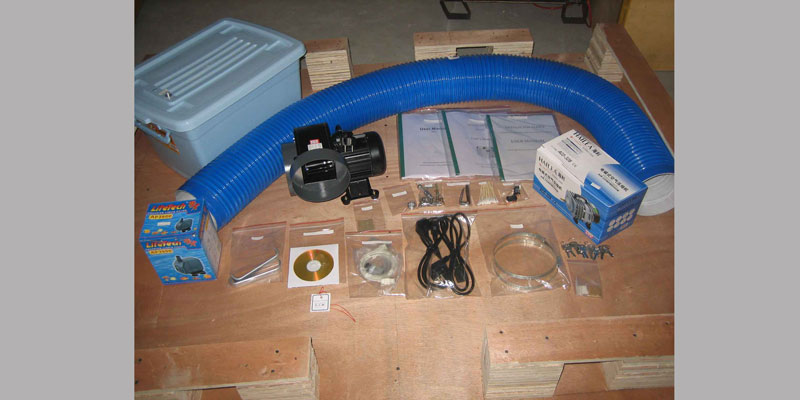

800 Series Accessories
800 Series Accessories

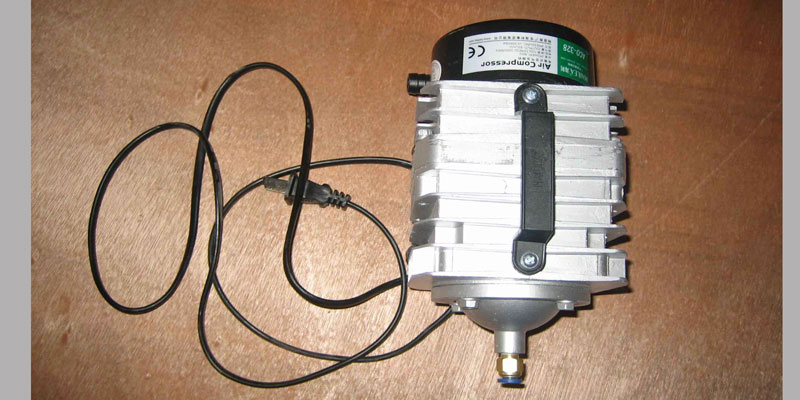

800 Series Air Assist
800 Series Air Assist

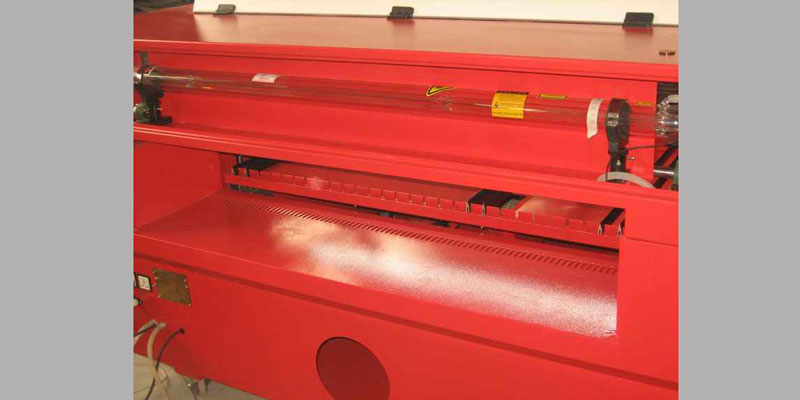

800 Series Rear Pass Through
800 Series Rear Pass Through

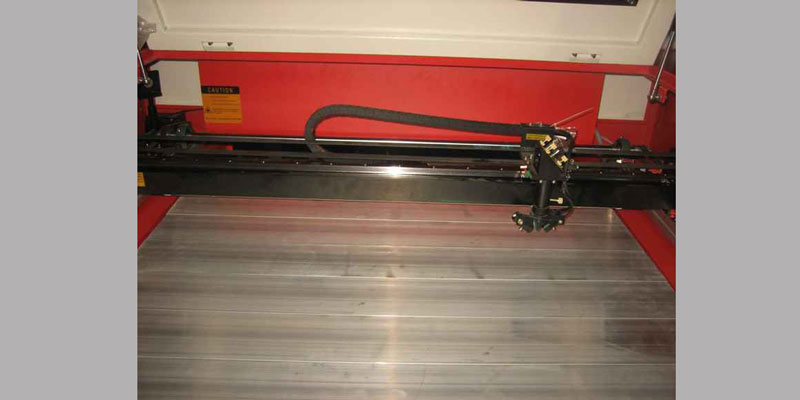

800 Series Flat Engraving Table
800 Series Flat Engraving Table

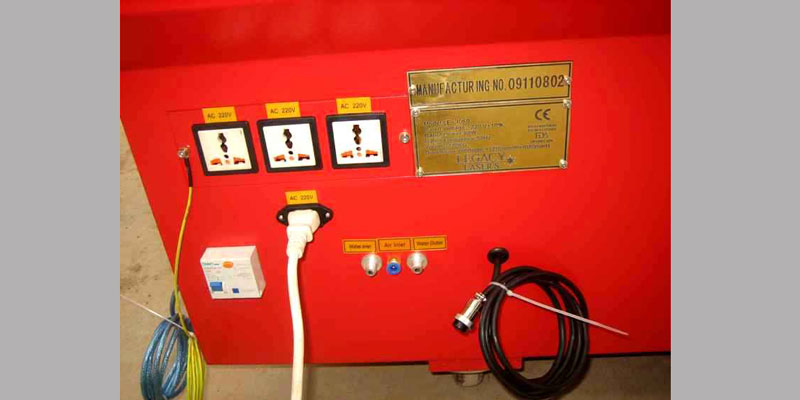

800 Series Power
800 Series Power

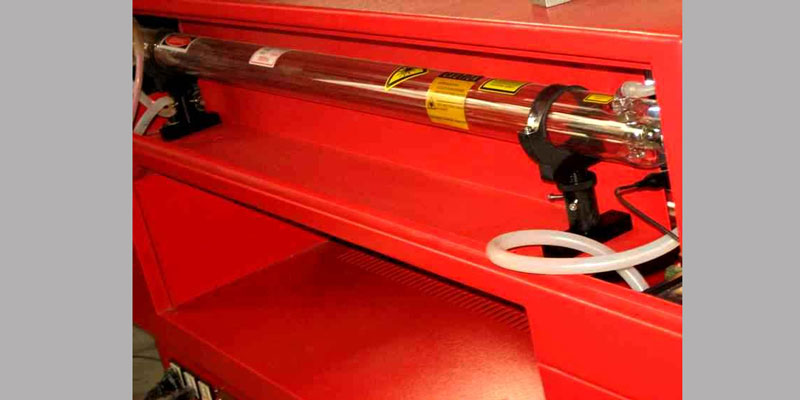

800 Series Laser Tube
800 Series Laser Tube

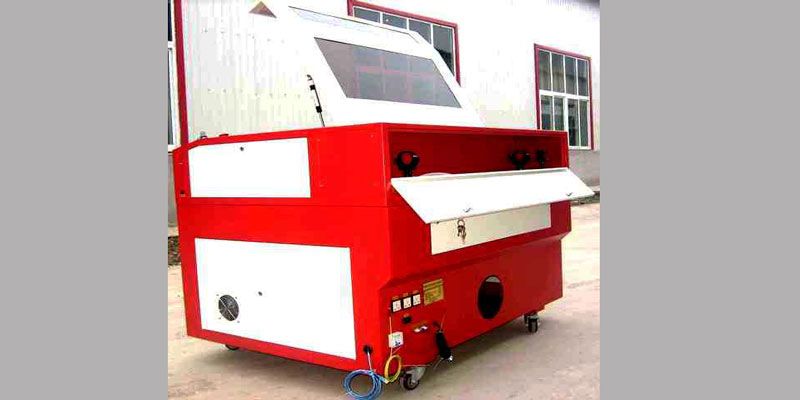

800 Series Laser Tube Compartment
800 Series Laser Tube Compartment

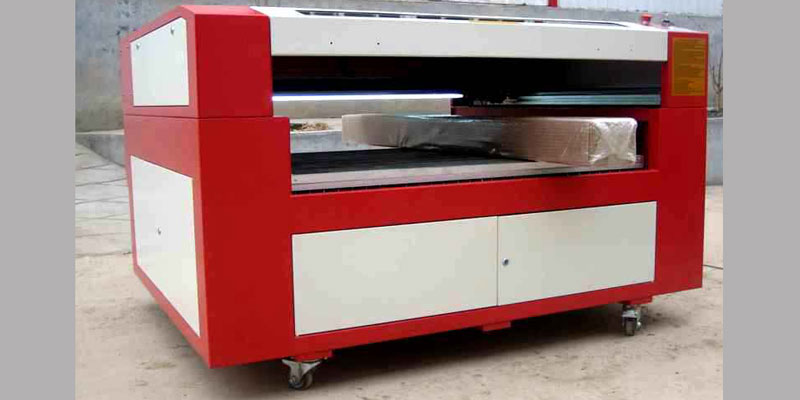

800 Series Pass through
800 Series Pass through

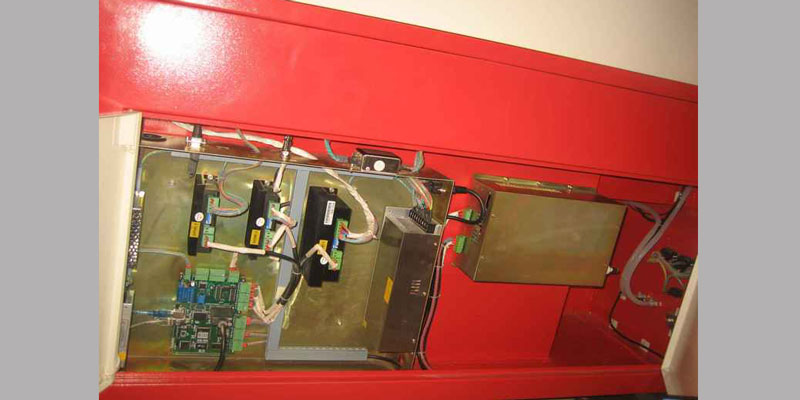

800 Series Main Boards
800 Series Main Boards

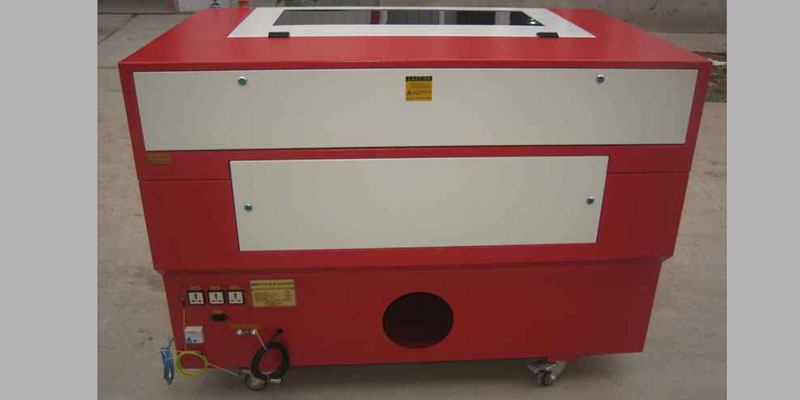

800 Series Rear
800 Series Rear

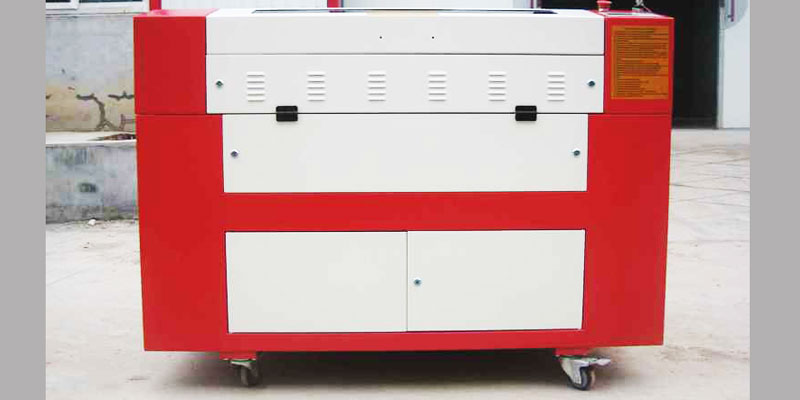

800 Series Front
800 Series Front

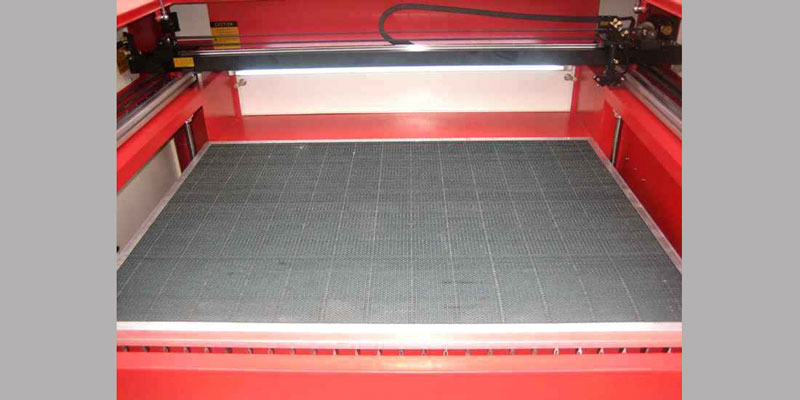

Optional Honeycomb Table
800 Series Optional Honeycomb Table
800 Series Front Pass through
800 Series Front Pass through

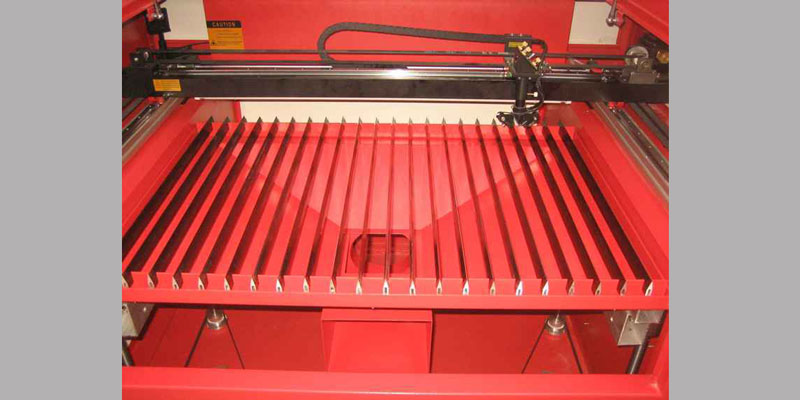

800 Series Cutting Table
800 Series Cutting Table

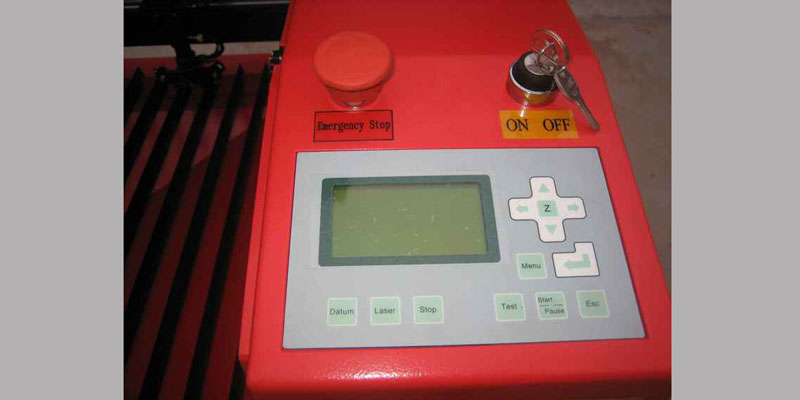

Control Panel
800 Series Control Panel

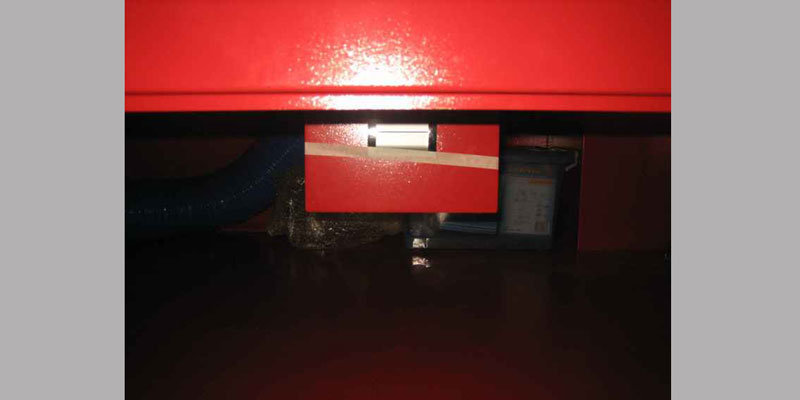

Drawer to catch small parts
800 Series Drawer to catch small parts

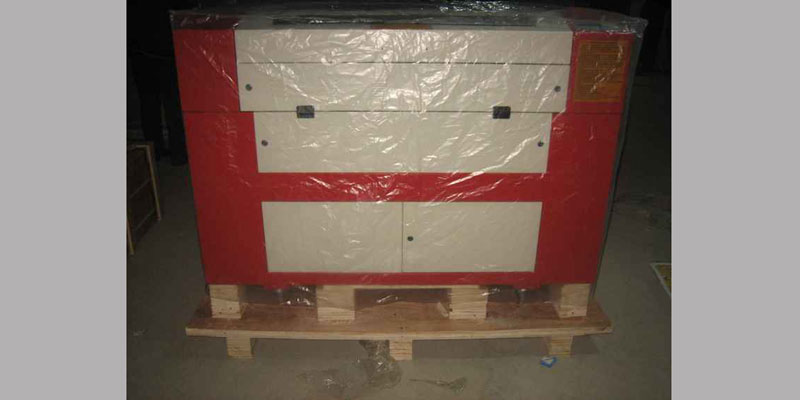

Crate 1
800 Series Crate 1
Crate
800 Series Crate

Machine Specifications for our 800 Series Laser Engraver / Cutter

Engraving / Cutting Area 35.4 x 23.6"
Laser Power 60W
Laser Type Co2
Laser Life 1,500 - 2,000 hrs.
Machine Dimensions 53.5 x 39.7 x 40.9 "
Max Material Height 10.6" by Motorized work table
Cutting Depth 3/4" Acrylic
Engraving Speed 39"/Sec
Cutting Speed 23"/Sec
Resolution (Dpi) Up to 1200 Dpi
Position Repeatability .0004"
Drive Type Stepper
Power Requirement Machine will be wired for 110 or 220  (no transformer needed)
Work Table Type Aluminum Allow or Honeycomb Work Table
Cooling Type Water Cooling System (chiller)
Included Software Laser Cut 5.3  Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai
Supported Software Corel X2, X3, X4 ,X5, X6, X7 AutoCad 2000 and Higher
Color Based Power Settings Yes
Mixed Mode Operation Yes, able to engrave & cut within a single file
Computer XP - Win 8
Included Items Exhaust
  Air Assist w/ Compressor
  1  60W Laser Tube
  1 Set of Lens & Mirrors
  1 Water Cooling Unit (chiller)
  Red Dot Pointer
Optional Auto Focus                                 $200
  Spare Lens and Mirrors           $250
  PhotoGrav                                  $395
  Rotary Attachment                   $600
  Onsite Setup and Training      $1,500
