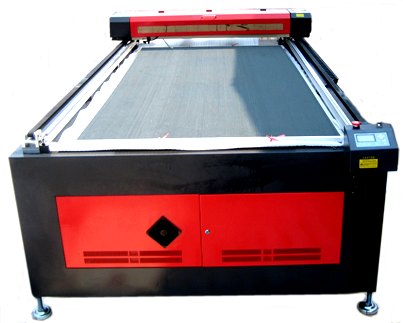

2500 Series Flatbed Cutter

  • Finance as low as $342/month.

Our 1100 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Our 500 Series, 700, 800 & 1100 laser engravers and cutters comes with a manufacturer's Two year warranty plus service and support from our US-based team of experts.

The 1100 Series laser engravers feature laser tubes ranging from 80 watts up to a powerful 150 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass. Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.

The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser's your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum

Machine Photo Gallery

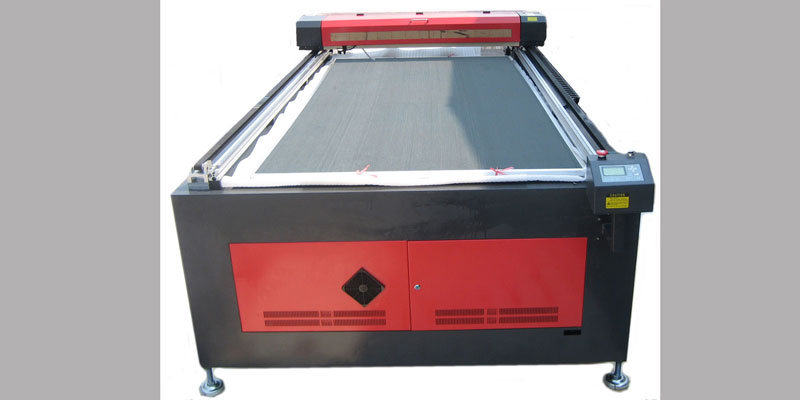

2500 Series flatbed
2500 Series flatbed

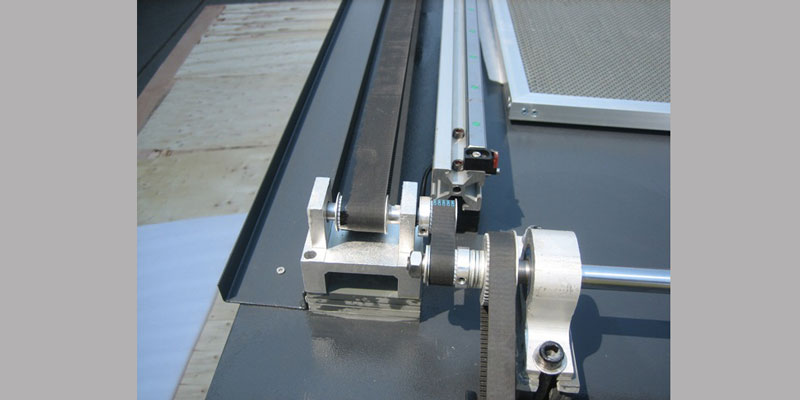

2500 Series 084
2500 Series 084

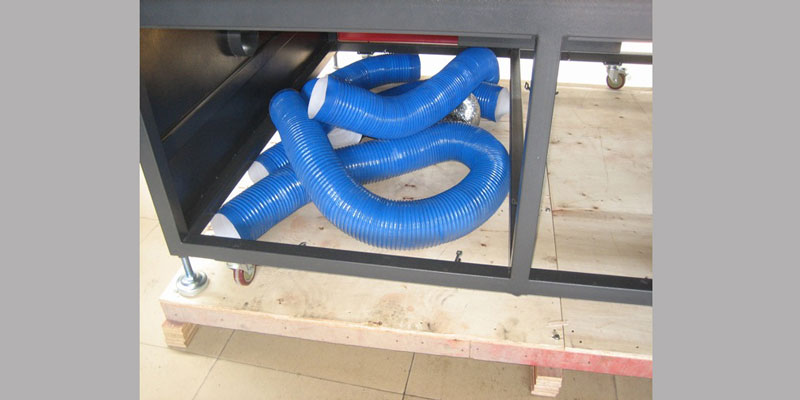

2500 Series 040
2500 Series 040

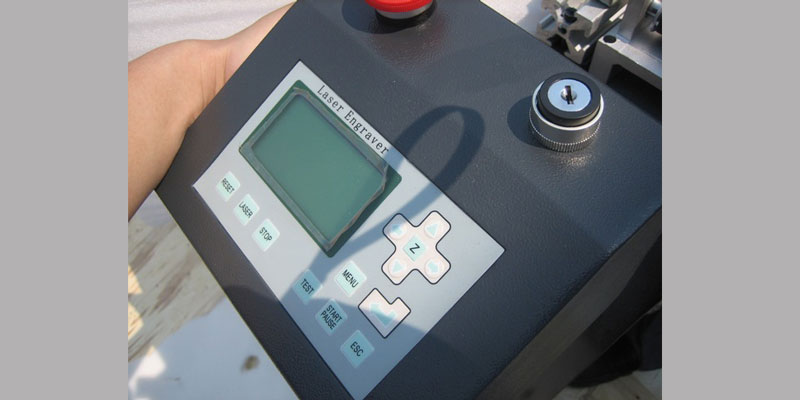

2500 Series 112
2500 Series 112

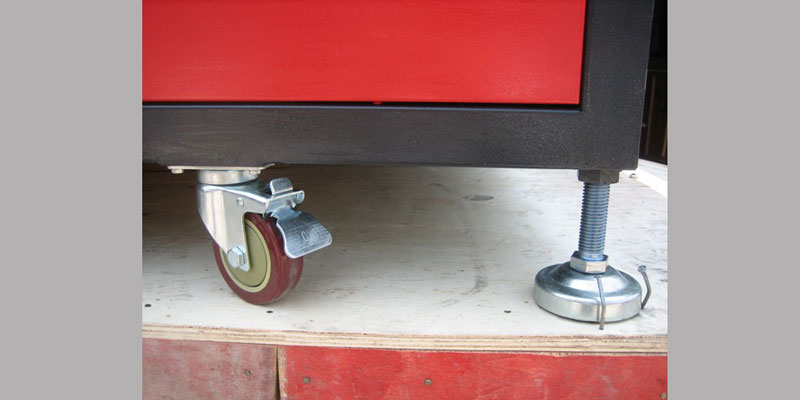

2500 Series 173
2500 Series 173

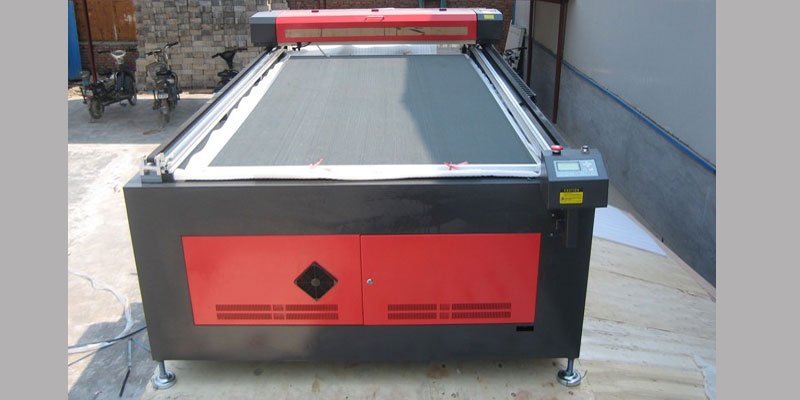

2500 Series 179
2500 Series 179

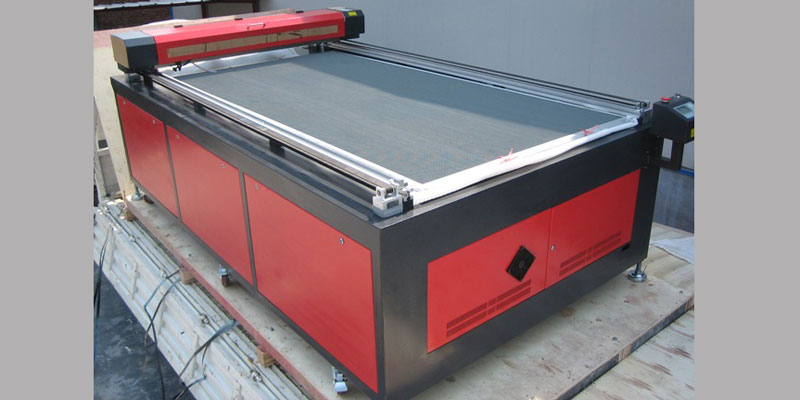

2500 Series 180
2500 Series 180

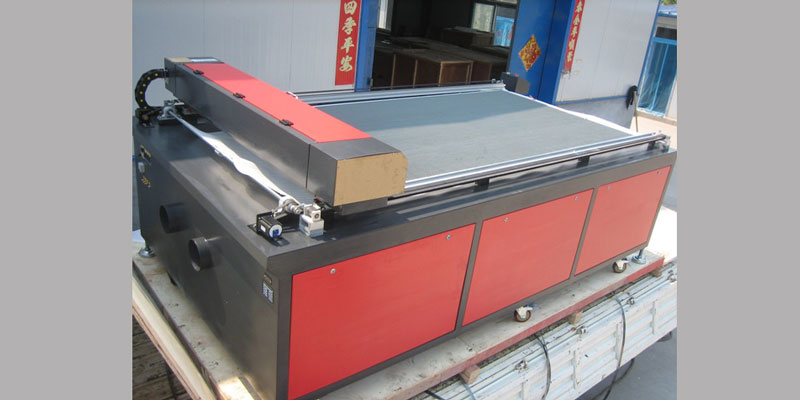

2500 Series 188
2500 Series 188

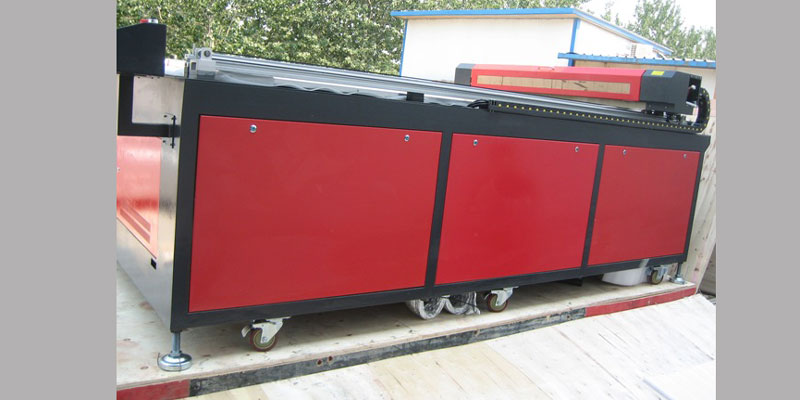

2500 Series Side
2500 Series Side

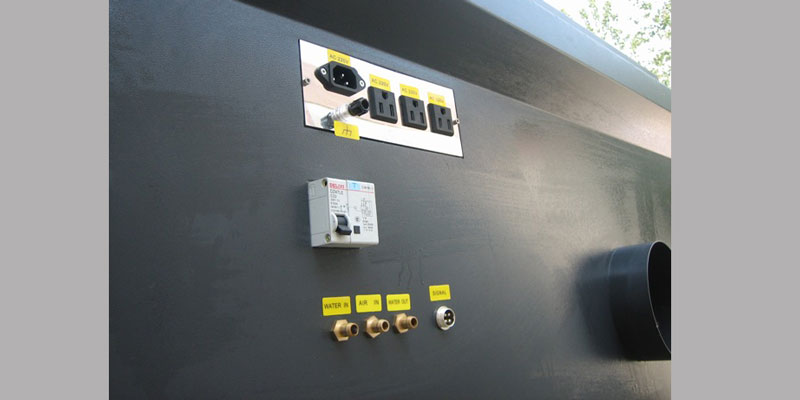

2500 Series 209
2500 Series 209

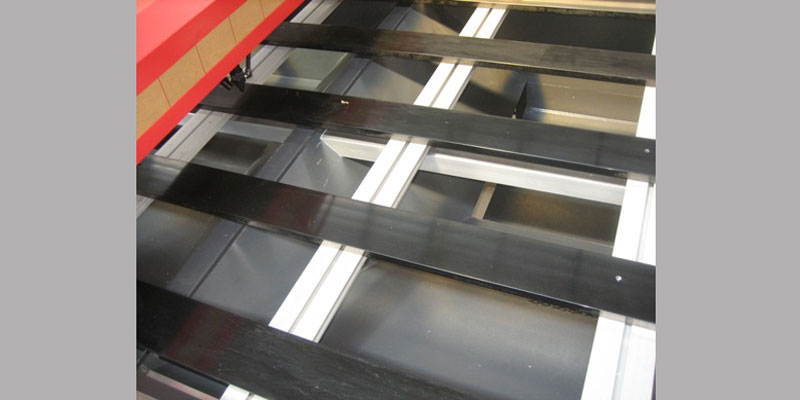

2500 Series Slat Table
2500 Series Slat Table

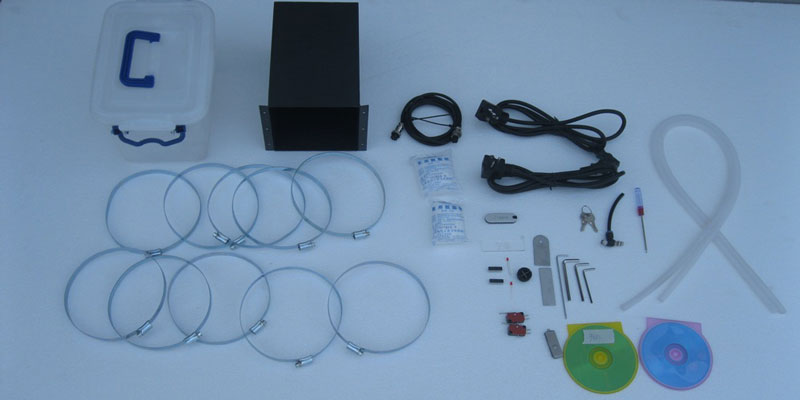

2500 Series
2500 Series

Machine Specifications for our 2500 Series Flatbed Cutter

Engraving / Cutting Area 47.2 x 98.4
Laser Power 80W Upgrade to 100, 120, 150W   (Pricing for upgrade below)
Laser Type Co2 Reci
Laser Life 8,000 hrs
Machine Dimensions 126 x 72.8 x 43.3
Max Material Height 1" by Motorized work table
Cutting Depth 1.0" Acrylic
Engraving Speed 39"/Sec
Cutting Speed 23"/Sec
Resolution (Dpi) Up to 1200 Dpi
Position Repeatability .0004"
Drive Type Stepper
Power Requirement Machine will be wired for 110 or 220  (no transformer needed)
Work Table Type Cutting Slats. . Optional honeycomb table available
Cooling Type Water Cooling System (chiller)
Included Software Laser Cut 5.3  Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai
Supported Software Corel X2, X3, X4 ,X5, X6, X7 AutoCad 2000 and Higher
Color Based Power Settings Yes
Mixed Mode Operation Yes, able to engrave & cut within a single file
Computer XP - Win 8
Included Items Exhaust
  Air Assist w/ Compressor
  1  80W Laser Tube
  1 Set of Lens & Mirrors
  1 Water Cooling Unit (chiller)
  Red Dot Pointer
Optional Auto Focus                                 $200
  Spare Lens and Mirrors           $250
  PhotoGrav                                  $395
  Onsite Setup and Training      $1,500
