1600 Series Laser Engraver / Cutter

  • Finance as low as $271/month.

Our 1600 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Our 1600 laser engravers and cutters comes with a manufacturer's Two year warranty plus service and support from our US-based team of experts.

The 1600 Series laser engravers feature laser tubes ranging from 80 watts up to a powerful 150 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass. Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.

The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser's your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum

Machine Photo Gallery

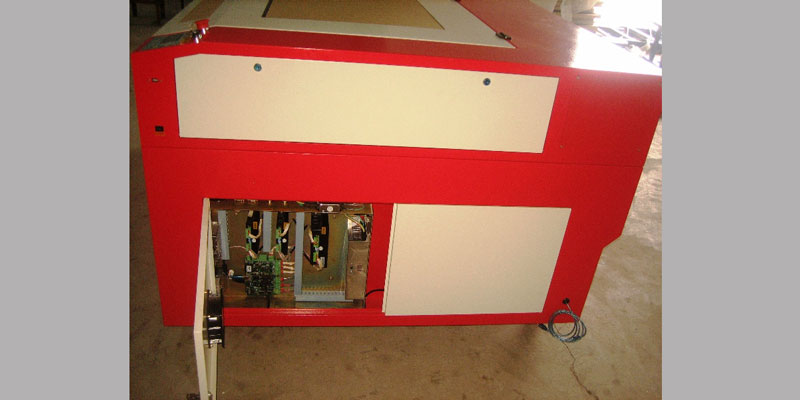

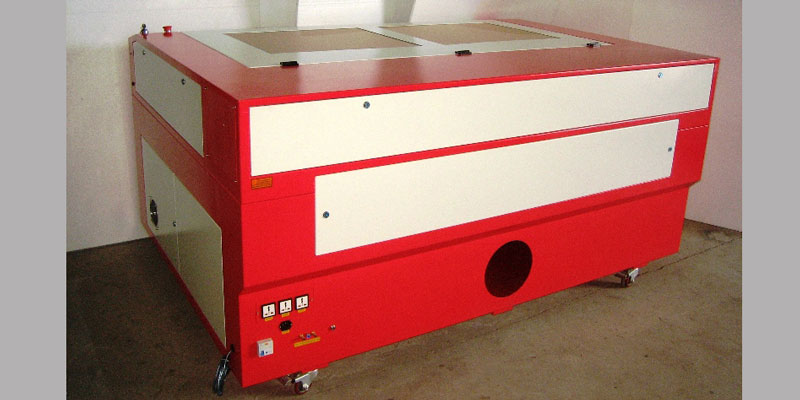

1600 Series rear
1600 Series rear

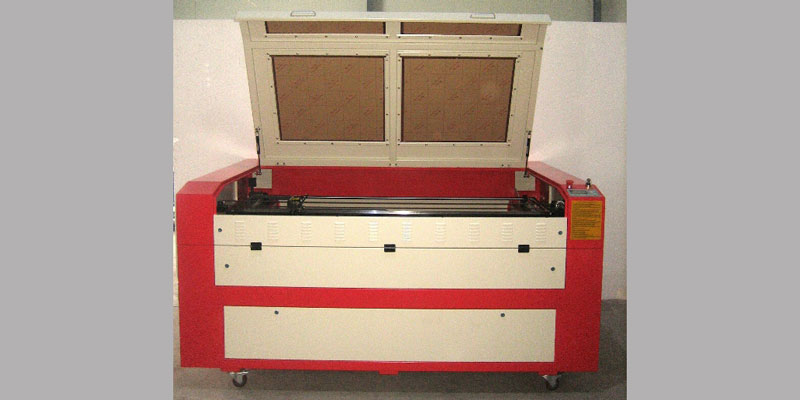

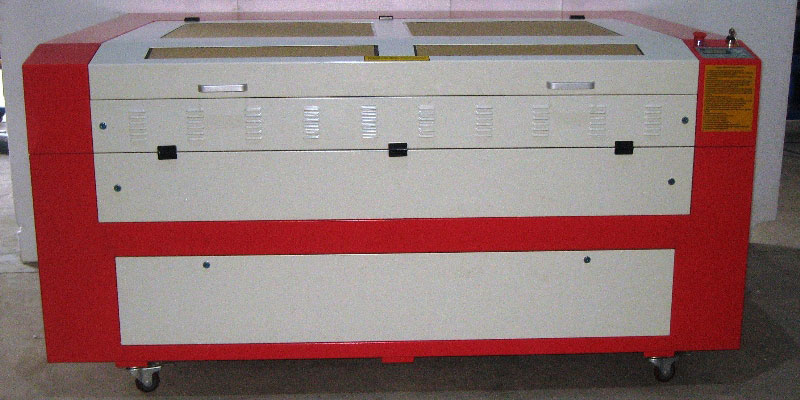

1600 Series Front
1600 Series Front
1600 Series Front
1600 Series Front

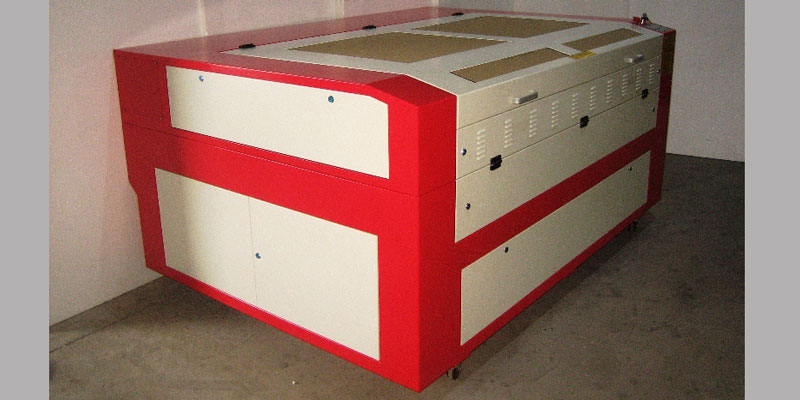

1600 Series Laser Left Side
1600 Series Laser Left Side

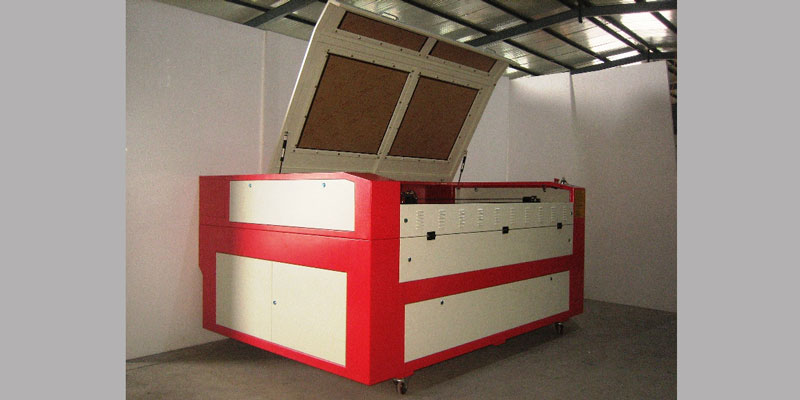

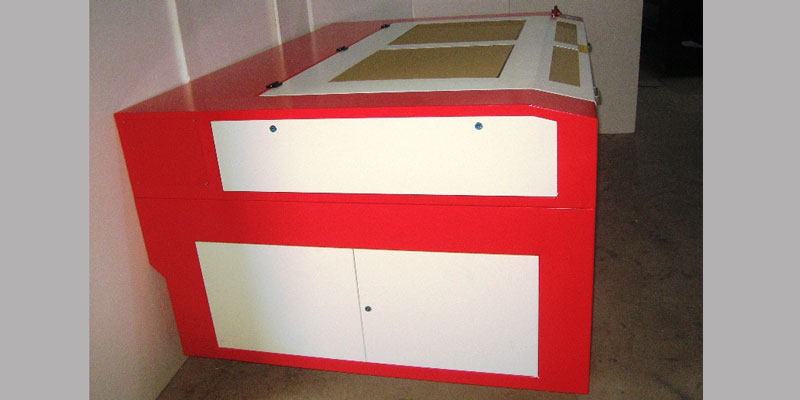

1600 Series Side
1600 Series Side
1600 Series Side
1600 Series Side

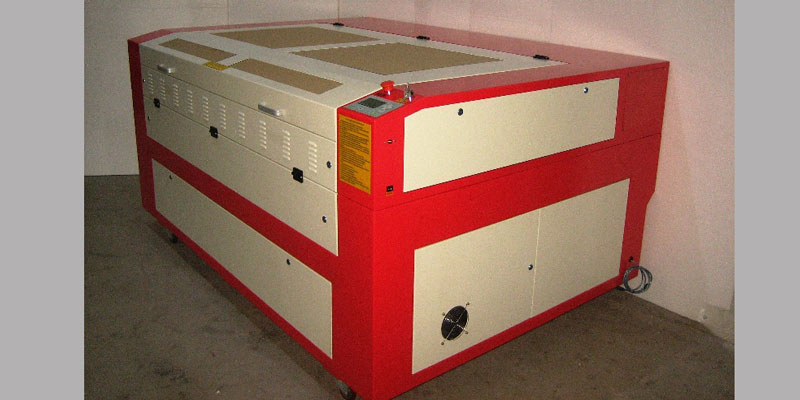

1600 Series Right
1600 Series Right

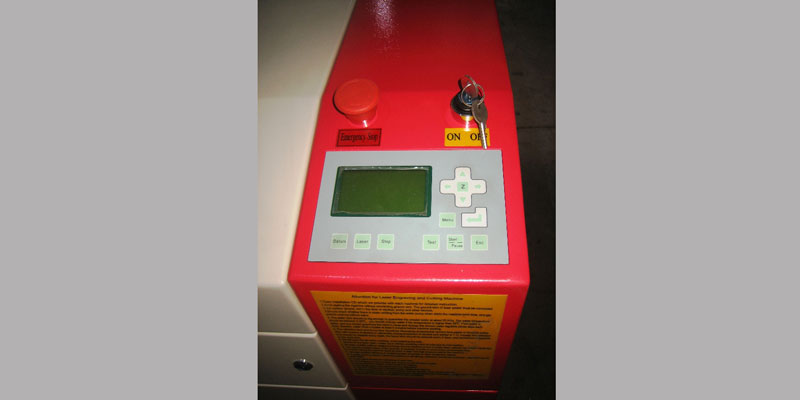

1600 Series Laser Control Panel
1600 Series Laser Control Panel

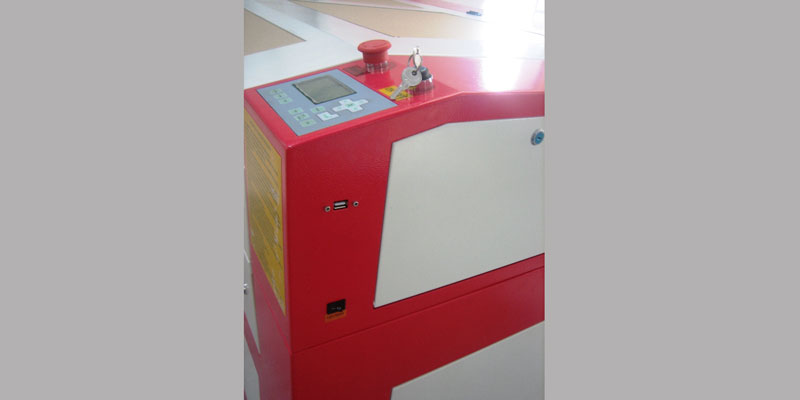

1600 Series Laser USB Port
1600 Series Laser USB Port
1600 Series Engraver Cutter
1600 Series Engraver Cutter

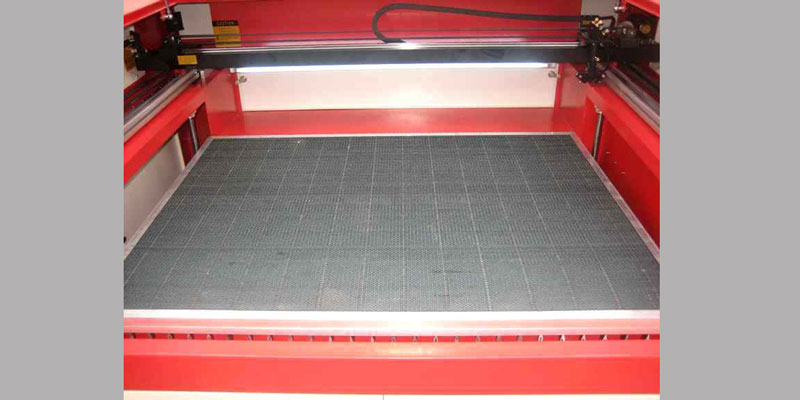

1600 Series Optional Honeycomb Table
1600 Series Optional Honeycomb Table

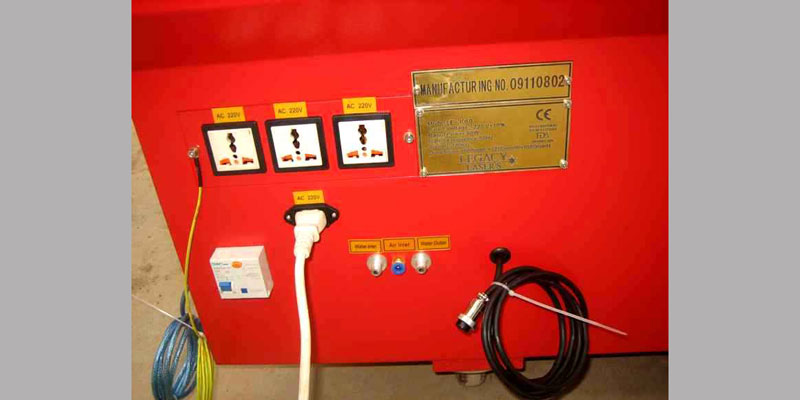

1600 Series Front Pass through
1600 Series Front Pass through

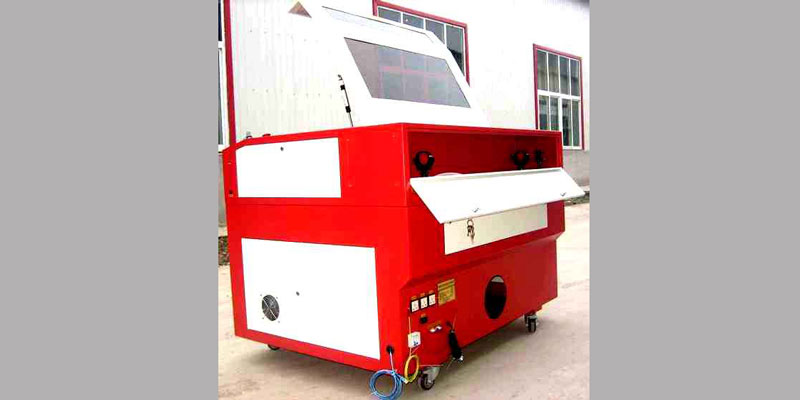

1600 Series Laser Tube Compartment
1600 Series Laser Tube Compartment

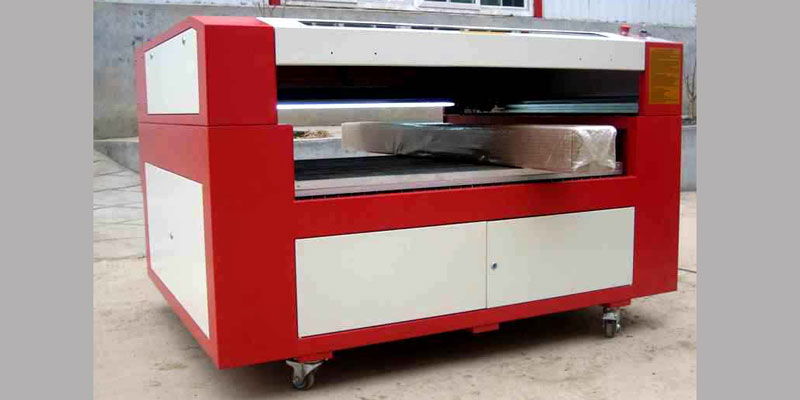

1600 Series Front Pass through
1600 Series Front Pass through

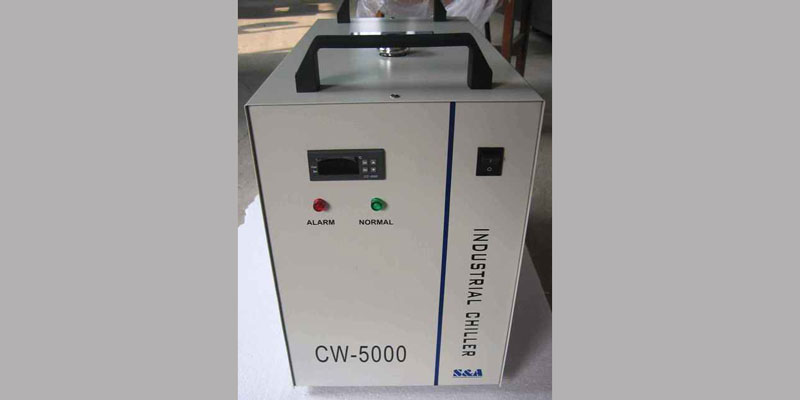

1600 Series Laser Chiller
1600 Series Laser Chiller

Machine Specifications for our 1600 Series Laser Engraver / Cutter

Engraving / Cutting Area 62.9 x 39.3
Laser Power 80W Upgrade to 100, 120, 150W   (Pricing for upgrade below)
Laser Type Co2 Reci
Laser Life 8,000 hrs
Machine Dimensions 81.1 x 57.4 x41.7
Max Material Height 10.6" by Motorized work table
Cutting Depth 1.0" Acrylic
Engraving Speed 39"/Sec
Cutting Speed 23"/Sec
Resolution (Dpi) Up to 1200 Dpi
Position Repeatability .0004"
Drive Type Stepper
Power Requirement Machine will be wired for 110 or 220  (no transformer needed)
Work Table Type Aluminum Allow or Honeycomb Work Table
Cooling Type Water Cooling System (chiller)
Included Software Laser Cut 5.3  Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai
Supported Software Corel X2, X3, X4 ,X5, X6, X7 AutoCad 2000 and Higher
Color Based Power Settings Yes
Mixed Mode Operation Yes, able to engrave & cut within a single file
Computer XP - Win 8
Included Items Exhaust
  Air Assist w/ Compressor
  1  80W Laser Tube
  1 Set of Lens & Mirrors
  1 Water Cooling Unit (chiller)
  Red Dot Pointer
Optional Auto Focus                                 $200
  Spare Lens and Mirrors           $250
  PhotoGrav                                  $395
  Rotary Attachment                   $600
  Onsite Setup and Training      $1,500
